Which is more energy-efficient, a vertical long axis semi submersible turbine pump or a vertical double tube submersible sump pump?

‌

Vertical long shaft semi submersible turbine pumps are usually more energy-efficient, and their energy-saving advantages are mainly reflected in structural design, hydraulic efficiency, operational stability, and long-term cost-effectiveness. The specific analysis is as follows:
1、 Optimizing structural design to reduce energy consumption

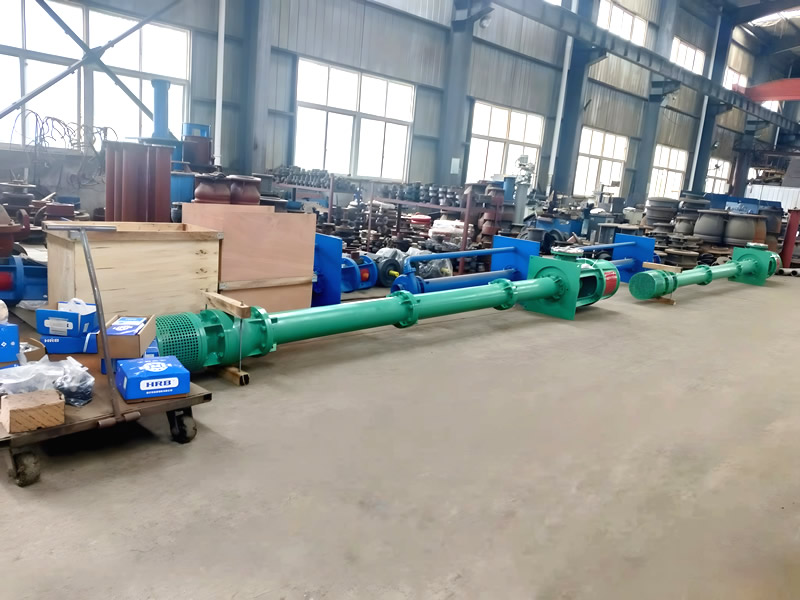

The vertical long shaft semi submersible turbine pump adopts a single tube structure, and the long shaft can be adjusted through multiple sections to adapt to different underwater depths. The underwater bearing adopts wear-resistant rubber sliding guide bearing and is designed with an internal pipe isolation medium, and the external lubricating water directly lubricates the guide bearing. This design reduces hydraulic losses and mechanical friction, resulting in lower energy consumption of the pump when transporting liquids. The dual cylinder structure of the vertical double tube submersible sump pump can reduce some hydraulic losses, but its overall weight and large installation foundation holes result in relatively high mechanical and vibration energy consumption during operation.
2、 Higher hydraulic efficiency
The vertical long shaft semi submersible turbine pump has improved its hydraulic efficiency by optimizing its hydraulic design, such as using balance holes to balance axial forces, and installing replaceable sealing rings to protect the impeller and pump body. Some models have an efficiency of up to 84% and consume less electricity when transporting liquids with the same flow rate and head. In contrast, although the structure of the vertical double tube submersible sump pump helps to reduce hydraulic losses, its overall efficiency is usually lower than that of the vertical long shaft pump due to the limitations of the twin tube design and operating conditions.
3、 Stable operation reduces energy consumption fluctuations
The long shaft drive design of the vertical long shaft semi submersible turbine pump enables it to maintain stable operation even when transporting liquids containing impurities, and is less prone to problems such as jamming and vibration. Stable operation not only improves conveying efficiency, but also reduces energy consumption fluctuations and maintenance costs caused by malfunctions. However, the vertical double tube submersible sump pump may experience increased vibration and energy consumption during operation due to difficulties in bearing sealing or complex lubrication water components.
4、 Significant long-term cost-effectiveness
Although the initial investment of a vertical long shaft semi submersible turbine pump may be relatively high, its high efficiency and energy-saving characteristics significantly reduce long-term operating costs. For industrial circulating water systems, agricultural irrigation systems, and other scenarios that require long-term operation, the energy-saving advantages of vertical long axis semi submersible turbine pumps are more obvious. Although vertical double tube submersible sump pumps have advantages in certain operating conditions (such as conveying viscous and highly abrasive sludge media), their overall energy consumption and operating costs are usually higher than those of vertical long shaft semi submersible turbine pumps.
